Features

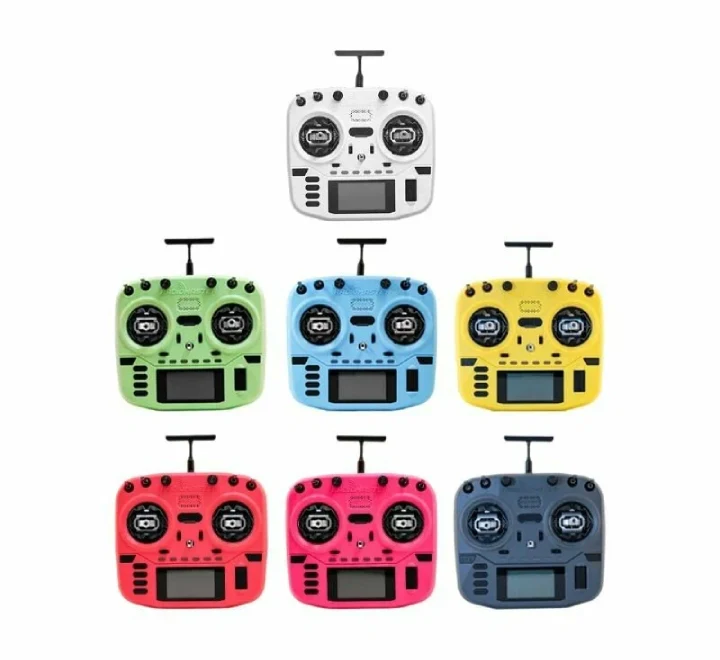

- Available in multiple colors: Iron Grey, Frost White, Mint Mist, Hot Pink, Cherry Red, Iceberg Blue, Lemon Twist Yellow
- CNC-machined AG01 Hall-effect gimbals for precise control
- Built-in ExpressLRS backpack support
- Powered by STM32F407VGT6 (1MB Flash, 192KB RAM)
- Preinstalled EdgeTX firmware for ready-to-use setup
- Internal ExpressLRS RF module with up to 1000Hz refresh rate
- Adjustable RF output power for ExpressLRS
- QC3.0 fast charging support (up to 2.0A)
- Compact, ergonomic design for comfortable long sessions
- Low-profile SE latch switch and momentary SF switch
- Large battery compartment supporting up to 2S 6200mAh packs (up to ~20 hours runtime, batteries not included)
- Standard JR-compatible module bay
- Built-in internal cooling fan for thermal management
- Standardized RadioMaster button layout
- 6-position switch for flexible flight mode control
- Adjustable and removable T-shape antenna
- Fabric carry handle for improved portability
- Replaceable ergonomic grip panels
- Redesigned SD card slot with included 512MB preloaded card
- External module power support via battery cover
- Includes carry case and gimbal protectors as standard
Specifications
- Product: Boxer Crush Radio
- Colors: Iron Grey / Frost White / Mint Mist / Hot Pink / Cherry Red / Iceberg Blue / Lemon Twist Yellow
- Dimensions: 235 × 178 × 77 mm
- Weight: 617.1 g
- Frequency Range: 2.400 – 2.480 GHz
- Internal RF System: ExpressLRS 2.4 GHz
- Supported Protocols: Module dependent
- Cooling: Built-in fan
- Operating Voltage: 6.6 – 8.4 V DC
- Firmware: EdgeTX (transmitter) / ExpressLRS (RF module)
- Channels: Up to 16 (receiver dependent)
- Battery Options: 7.4V 2S LiPo or dual 18650 Li-Ion (not included)
- Display: 128 × 64 monochrome LCD
- Gimbals: AG01 CNC Hall-effect
- External Module Support: JR / FrSky / Crossfire compatible
- Firmware Upgrade Methods: USB / SD card / EdgeTX Companion software
